SPLASHDRONE 4
Multi-functional waterproof flight platform
Watch Video
SplashDrone 4 is the 5th generation waterproof drone representing SwellPro's 7 years of knowledge and understanding of drone waterproofing technology. SplashDrone 4 is the all-new waterproof flight & float platform designed for multipurpose operation in any harsh environment.
Survey
Filming
Fishing
Rescue
A new benchmark for waterproof drones
IP67 seawater proof body
IP66 Waterproof remote controller
5km image transmission
Automatic power flip
2KG bait capacity
30 min flight time
Slide-in smart battery
Dynamic return to pilot
All-new IP67 seawater-proof body
SplashDrone 4 is designed to have the best waterproofing technology in the industry. The tough, rigid fuselage of is made out of industrial-grade ABS. Each SplashDrone 4 is factory-sealed to the slightest details and air-pressure tested for our exclusive 100% waterproof guarantee. The waterproof motors and internal electronics are also coated with corrosion-resistant coating adding an extra layer of protection over the already total waterproof design.
Floating design
Corrosion-free
All weather flying ( rain & snow)
All-new IP66 Waterproof Remote Controller
SplashDrone 4 is designed to have the best waterproofing technology in the industry. The tough, rigid fuselage of is made out of industrial-grade ABS. Each SplashDrone 4 is factory-sealed to the slightest details and air-pressure tested for our exclusive 100% waterproof guarantee. The waterproof motors and internal electronics are also coated with corrosion-resistant coating adding an extra layer of protection over the already total waterproof design.
High-brightness 2-in digital telemetry display
WiFi multi-point hotspot
Built-in GPS
8-hour battery life
Multi-functional Payload Options
With its modular multi-functional payload system and open interface design, the SplashDrone 4 can quickly adapt to different tasks in the field.
For Filming
  • GC3-S
  • GC2-S
  • GC1-S

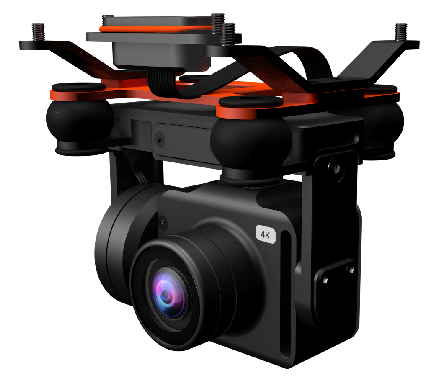

Waterproof 3-axis 4K camera
Capture smooth videos and crisp photos with the new, fully waterproof 4K camera stabilized by a 3-axis gimbal. GC3-S is our flagship gimbal camera. The powerful gimbal remains stable even in water while taking underwater shot. GC3-S now has Pro mode and supports RAW photo. ND filters can also be added for greater creative freedom.

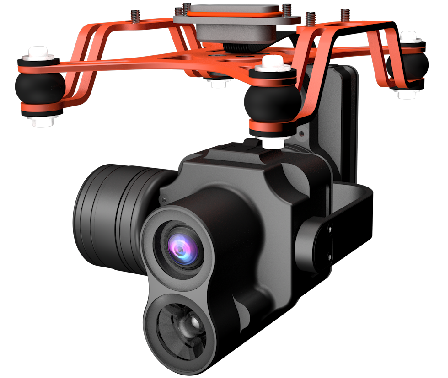

Waterproof 2 axis night vision camera
The new night vision camera comes with a spotlight that can illuminate nighttime scenes and restore true colors. Even without the LED, the camera itself can still capture decent details in low-light situations.
Waterproof 1-axis 4K camera
With the same sensor as GC3-S, GC1-S can capture high-quality 4K videos and crisp photos. It also has Pro mode and supports RAW photos. ND filters can be added for greater creative freedom.
For Fishing
  • PL1-S
Waterproof Payload Release
The PL-1 payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2KG of bait and drop the bait at targeted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targeted payload release. Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations.
Innovative Smooth+ Flight Control
The patented"Smooth+"flight control allows the pilot to finely tune the Roll and Yaw of SplashDrone 4. Smooth+ makes professional, steady flight control as easy as turning the knobs. Want to take a steady shot? Simply switch to Smooth+ control, together with our 4K 3-axis gimbal, you can take high-quality, ultra-smooth & steady shots effortlessly.
5KM Image Transmission
The latest 5.8GHz digital image transmitter and adjustable antennas ensures a clear and reliable image and control signal range to the SplashDrone 4 of over 5km while airborne.
Powerflip
When the drone turns upside down on the water for any reasons, Power-Flip feature turns the drone back to the normal state to take the control back.
Dynamic Return to pilot
The SplashDrone 4 constantly records the GPS position of the remote controller, allowing the aircraft to always return to the pilot‘s position even if they are on a moving boat far away from the original take-off point.
Intelligent Follow me
Actively track the position of the pilot at a constant angle from the front, side, and back with the camera always pointing to the subject.
Orbit Follow
Automatically follow and orbit around a moving object at a chosen radius.
Boat Mode
Equipped with floating foams, the boat mode allows SplashDrone 4 to sail on water just like a boat, providing great underwater shots while remains the water area uninterrupted. Caves and other overhead environments can now be accessed by SplashDrone 4 for research, exploration, and underwater photography.
Unrivalled-performance Propulsion System
The more powerful 740Kv Motor, 40A ESC together with optimized aerodynamic design allow for tight, responsive, and total control of SplashDrone 4 in any challenging weather conditions.
Wind resistance beaufort force 7 (33 knots / 31 mph / 60 km/h)
2kg payload capacity
Smart Battery
The new slide-in smart battery has an internal battery management system for real-time power monitoring and protection both in charging and discharging, ensuring battery health, safety and longer lifespan. The 6500mAh high-performance lithium technology cells provide up to 30 minutes of flight time.
Effortless Autopilot
The SwellPro SDFly APP
The newly-developed SwellPro SDFly APP enables logging, planning, recording of missions as well as the control and parameter setting of cameras and other modules in flight.
Cruise mode
Automatically fly at a designated speed and direction.
Tap to fly
Autonomously fly to a selected location on the map at a predetermined altitude and speed, and hover awaiting further commands.
Waypoint mission planning
Preplan a mission by selecting a series of waypoints on the map with adjustable speed, height, hover time and camera angle at each point.
Grid mission planning
Connect up to 256 waypoints to form a mission area planning and the drone will follow an uniform grid pattern flight path at the selected speed and interval.
SDK allows deep integration of third-party add-ons to SplashDrone 4. Together with API, SplashDrone 4 is truly a multi-purpose & multi-functional platform for your imagination.
SplashDrone 4
Fly, float, film, fish, find… wherever
SHOP NOW

Specs

Aircraft
Waterproof Rating:
IP67
Drone Weight (include battery and propellers):
2.18 kg
Max Ascend Speed:
4m/s
Axis Diameter:
450 mm
Max Descend Speed:
4m/s
Max Flight Speed:
22 m/s (ATTI)); 10 m/s (GPS)
Max Takeoff Altitude:
120m (GPS) / ATTI - no limitation
Max Tilt Angle:
12.5° (ATTI); 25° (ATTI fast)
Max Wind Speed Resistance:
8 m/s (11-16knots)(F4); 14 m/s (F7) peak gust
Max Flight Time:
30 mins (no wind & no load) (approx. 25 mins with GC3-S, approx.15 mins with load of 1.5kg)
Max Flight Distance:
5.0 km
Max Payload Capacity:
2.0 kg
Propellers:
#1242 carbon fiber quick release propellers
Operating Frequency:
5180 - 5875 MHz
Working Temperature:
-10℃ ~ 40℃
Transmitter Power (EIRP):
FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Satellite Positioning Systems:
GPS/GLONASS
Hovering Precision:
±0.5 m (vertical); ±0.5 m (horizontal)
Pass-through Serial Port:
Connect to a third-party device and transfer the data of the third-party device to the remote control
UART:
Allows for TTL serial port to TCP, support baud rate of 115200
Power Input:
12V/2A | 5V/2A
Wi-Fi Hotspot:
IP: 192.168.1.101:2222
Remote Control
Operating Frequency:
5180 - 5875 MHz
Waterproof Rating:
IP66
Transmitter Power (EIRP):
FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Real-time Video Transmission:
720P@30fps
Latency:
200 ms (It depends on the actual shooting environment and mobile devices)
Working Current/Voltage:
0.3A/7.4V
Battery:
2S 3600mAh
Working Time:
7 hours
Wi-Fi Hotspot:
IP: 192.168.2.220: 2020; Default password: 12345678
Ethernet Port:
IP: 192.168.2.220:2222
Screen:
2.68 inch, 128x64
Mobile Device Mount:
Suitable for any size phones; Tablets require a larger mount (sold separately)
Power Input:
5V/2A
Remote Charging time:
3 hours
Working Temperature:
-10℃ - 40℃
Intelligent Battery
Nominal Capacity:
6600mAh
Voltage:
14.8V
Type:
Intelligent 4S LiPo
Size:
153.6*82.4*48.3mm
Watt Hours:
97.68 Wh
Weight:
735 g (±5 g)
Working Temperature:
-10℃ - 40℃
Charging Time:
1.5 hour
Max Charging Power:
84 W
Charger
Input:
100 – 240V, 50/60Hz
Rated Power:
84.5 W
Output:
16.8V@Dynamic Current / 5V@1.5A
Mobile Device connection
Max Transmission Distance:
10 m (Unobstructed, free of interference)
Operation Frequency:
5180 - 5875 MHz
APP
Live View Quality:
720p@30fps
Mobile App Name:
SDFly
Latency:
＜ 250 ms (depending on environmental conditions and mobile devices)
3-Axis Gimbal Camera (GC3-S)
Axis:
3 axis (pitch, roll, yaw)
Waterproof:
IP67
Maximum Control Speed:
Pitch 60°/s
Pitching Angle:
-90° to 0°
Weight:
Approx. 310g
Size:
113*92*110mm
Image Sensor:
1/2.3" 12M SONY CMOS
ISO range:
100 - 3200
Lens:
F4.53mm f/2.65, FOV: 92.6°
Shutter Speed:
16 - 1/16000 s
Photo Shooting Mode:
A single shot
Photo Resolution:
4:3/16:9 12M pixel
Video Resolution:
4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p
Burst Photo:
3/5/10 pcs
Interval Photo:
1/3/5/10s
Max Video Stream:
64 mbps
Photo Format:
JPEG / DNG
Video Format:
MP4, MOV
Support Memory Card:
Micro-SD card with a maximum capacity of 128GB, write speed ≥15 MB/s, supports Class 10 or above & UHS-1 rating
Working temperature:
-10℃ to 40℃
1-Axis Gimbal Camera (GC1)
Axis:
1 axis (pitch)
Waterproof:
IP67
Pitching Angle:
-90° to 0°
Maximum Control Speed:
Pitch 60°/s
Weight:
Approx. 145g
Size:
71*55*65mm
Image Sensor:
1/2.3" 12M SONY CMOS
Lens:
F4.53mm f/2.65, FOV: 92.6°
ISO range:
100 - 3200
Shutter Speed:
16 - 1/16000 s
Photo Resolution:
4:3/16:9 12M pixel
Burst Photo:
3/5/10 pcs
Interval Photo:
1/3/5/10s
Video Resolution:
4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120P | HD: 1280*720/240P
Max Video Stream:
64 Mbps
Photo Format:
JPEG / DNG
Working temperature:
-10℃ to 40℃
Video Format:
MP4 / MOV
Support Memory Card:
Micro SD CARDS with a maximum capacity of 128GB, write speed ≥60 MB/s, supports Class 10 or above & UHS-1 rating
2-Axis Low-Light Gimbal Camera (GC2-S)
Weight:
Approx.220g
Waterproof:
IP67
Image Sensor:
1/2" 2M Starlight CMOS
Size:
113*92*80mm
Burst Photo:
3/5/10pcs
Lens:
FOV: 66°
Interval Photo:
1/3/5/10s
Video Resolution:
FHD: 1920*1080 30/60P | HD: 1280*720 120/60P
Max Video Stream:
64 Mbps
Photo Format:
JPEG
Video Format:
MP4 / MOV
Support Memory Card:
Micro SD CARDS with a maximum capacity of 128GB, write speed ≥65 MB/s, supports Class 10 or above & UHS-1 rating
Working temperature:
-10℃ to 40℃
Payload Release (PL1-S)
Weight:
96 g
Waterproof Rating:
IP67
Size:
59*38*50mm
Max. loading weight:
2 kg

FAQ

Q：How many cameras are compatible with SplashDrone 4?

Total 5 cameras, including GC1-S 4K camera, GC2-S night-version camera, GC3-S 4K camera, GC3-T thermal camera and FAC camera.

Q：What's the difference between GC3-S, GC2-S and GC1-S cameras?

GC3-S camera and GC1-S camera use the same camera sensor, the difference between them is that GC3-S is stabilized by a 3-axis gimbal while GC1-S uses a single-axis gimbal. GC3-S is mainly intended for high-quality photography while GC1-S camera is only for first-person-viewing. The GC2-S night-vision camera works day & night, but the resolution is lower than GC3-S and GC1-S.

Q：What’s the main use of SplashDrone 4?

Swellpro SplashDrone 4 is an all-new multifunctional waterproof drone that is designed for operation in harsh environments, it's not only can be used for fishing but also for aerial photography, underwater photography, etc.
